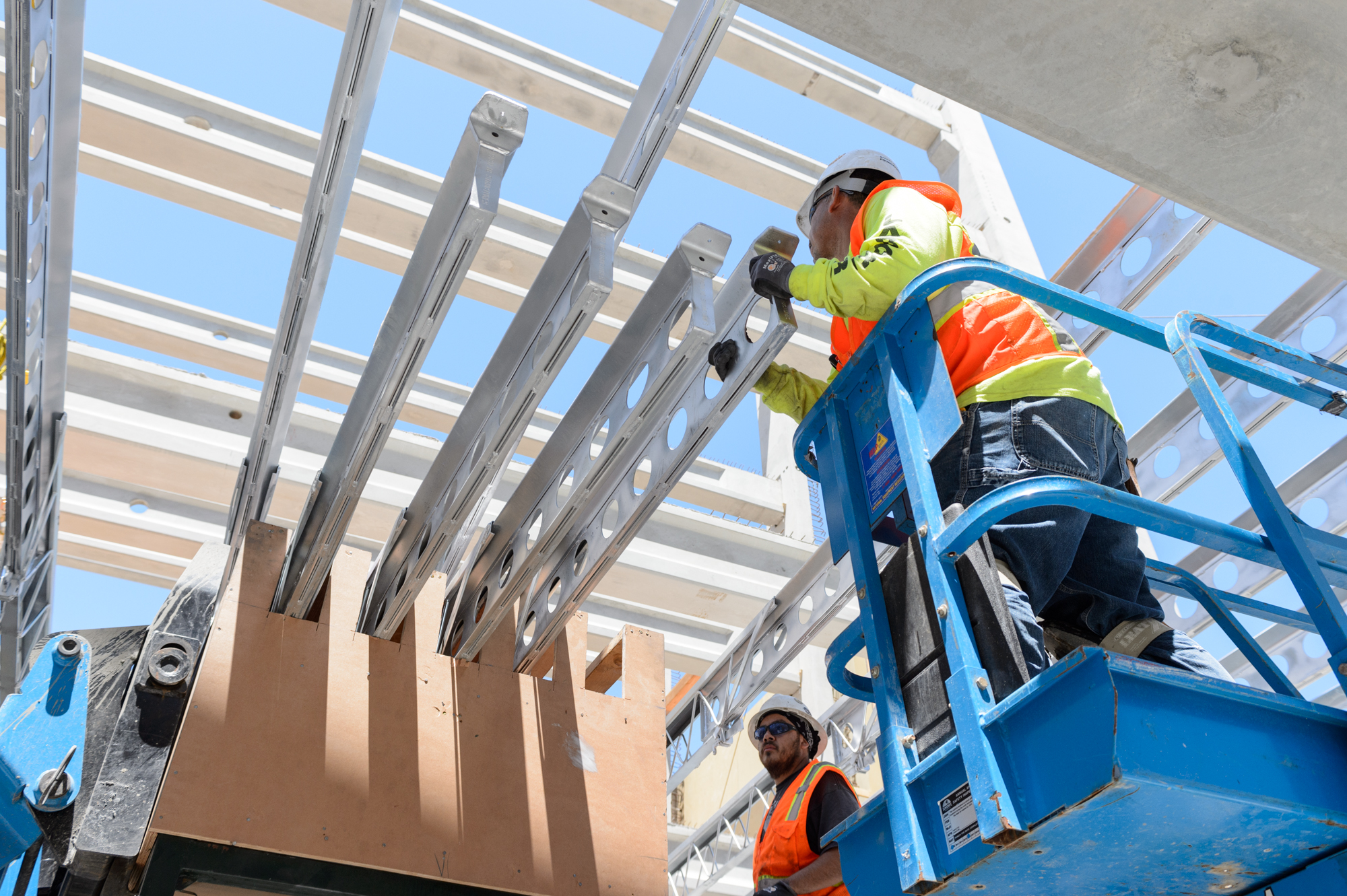

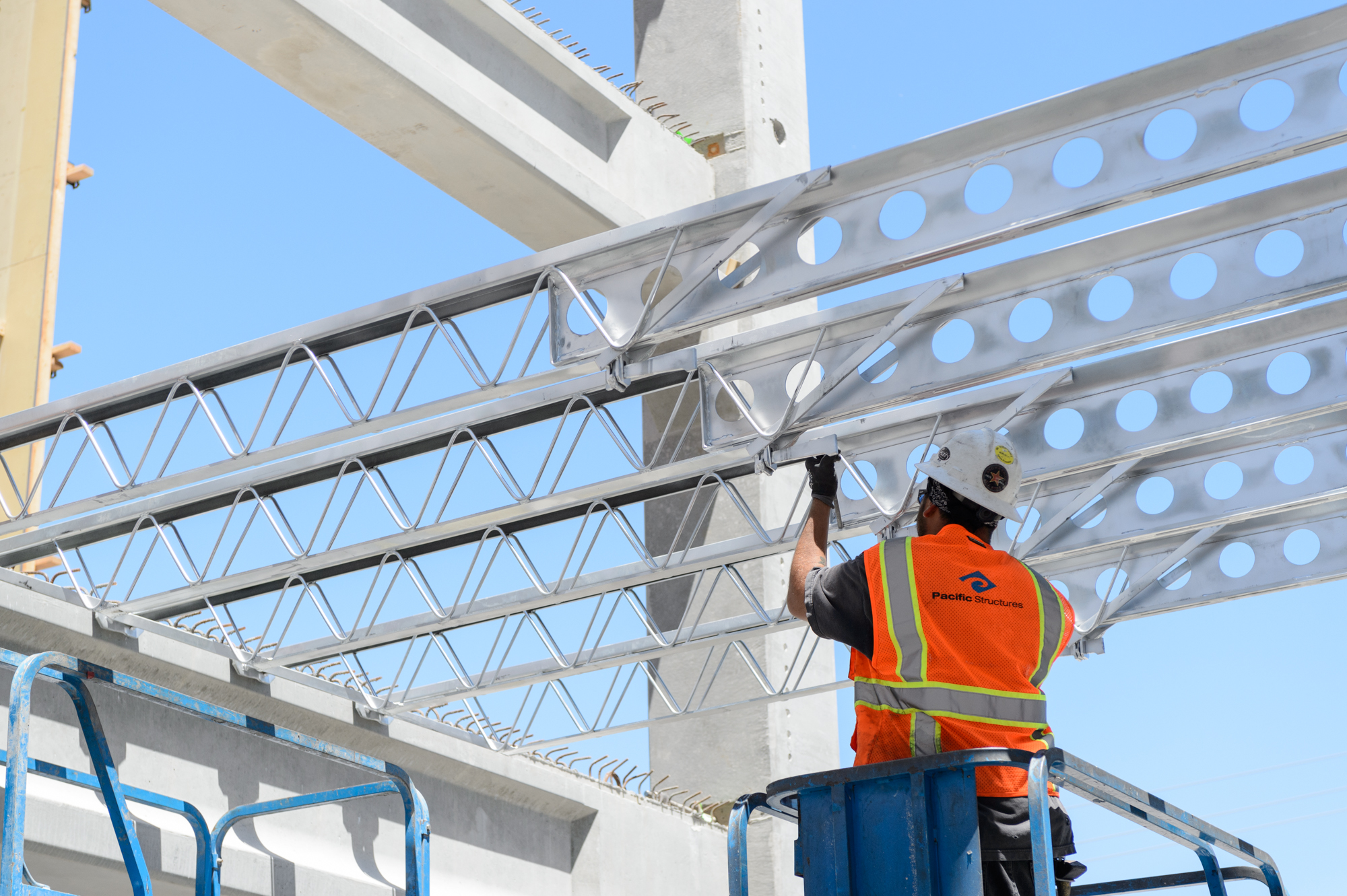

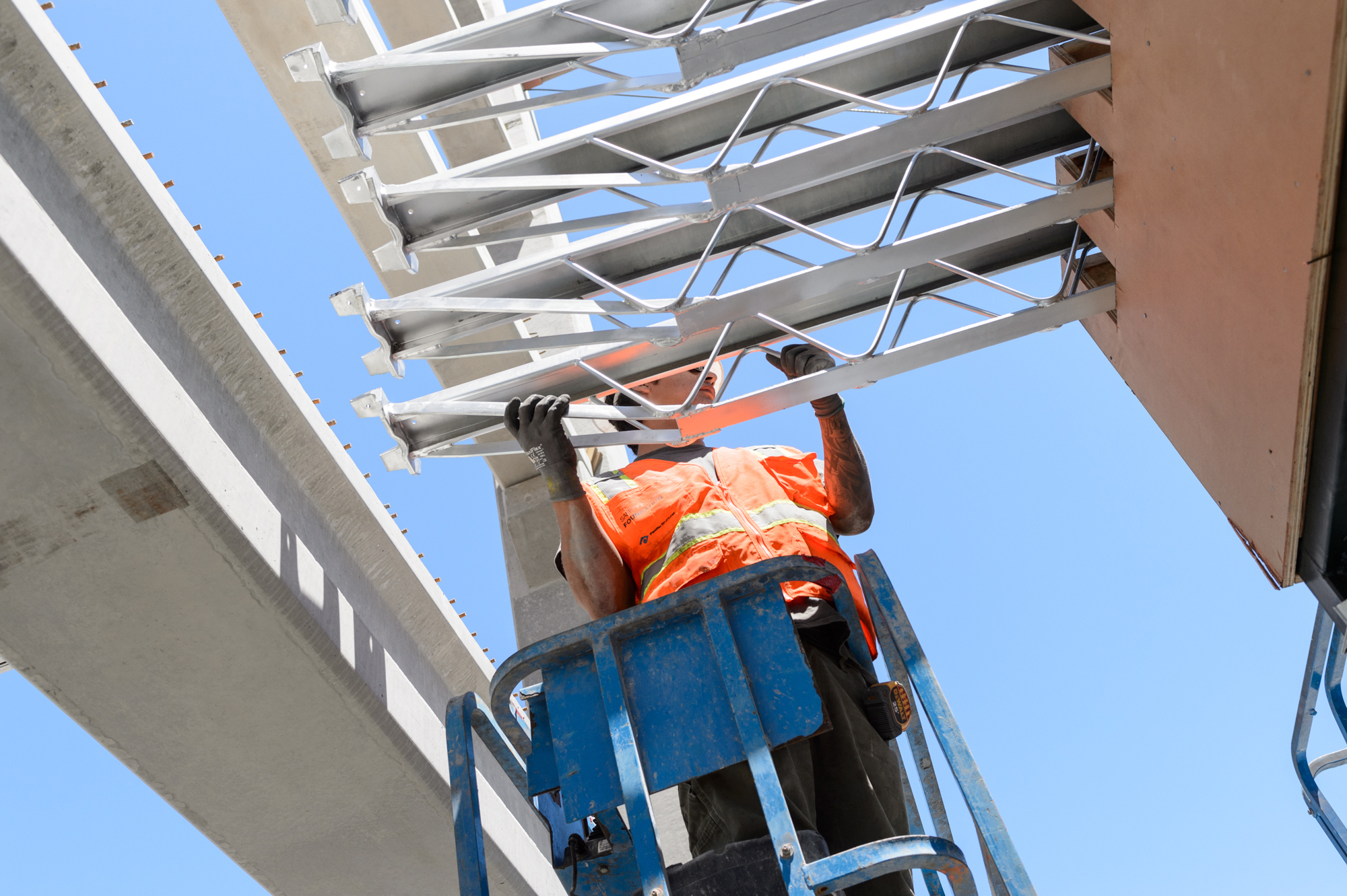

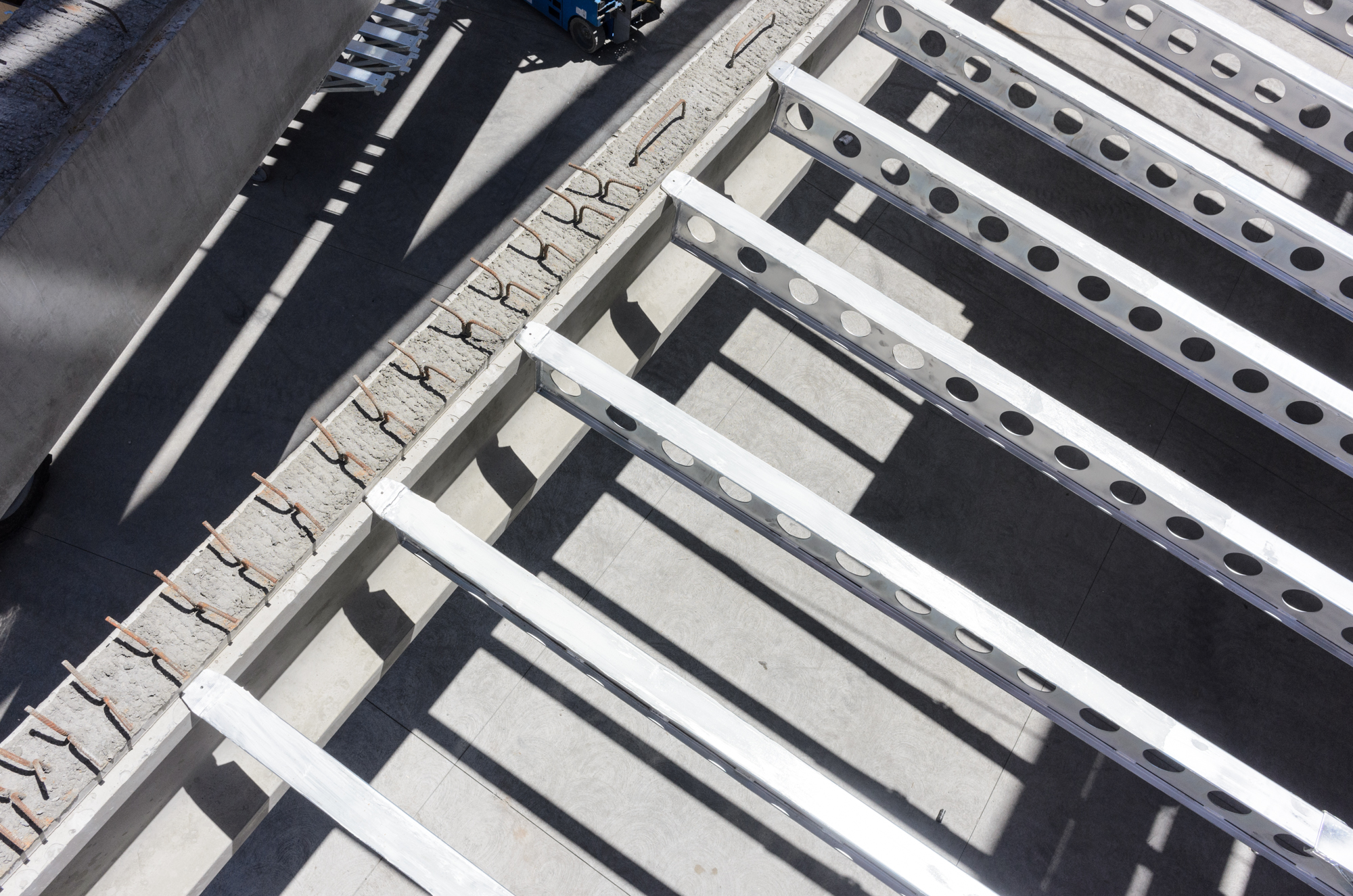

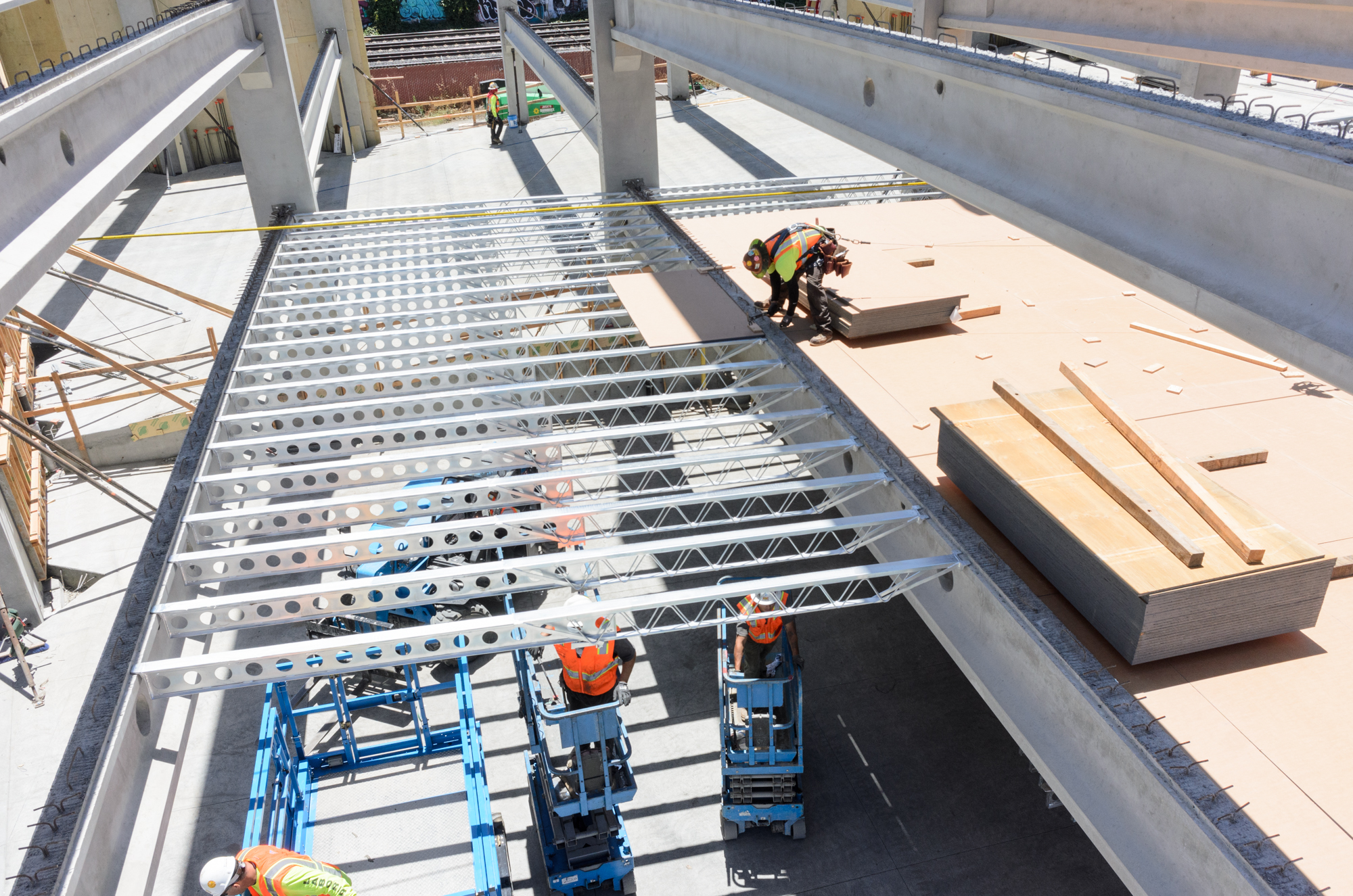

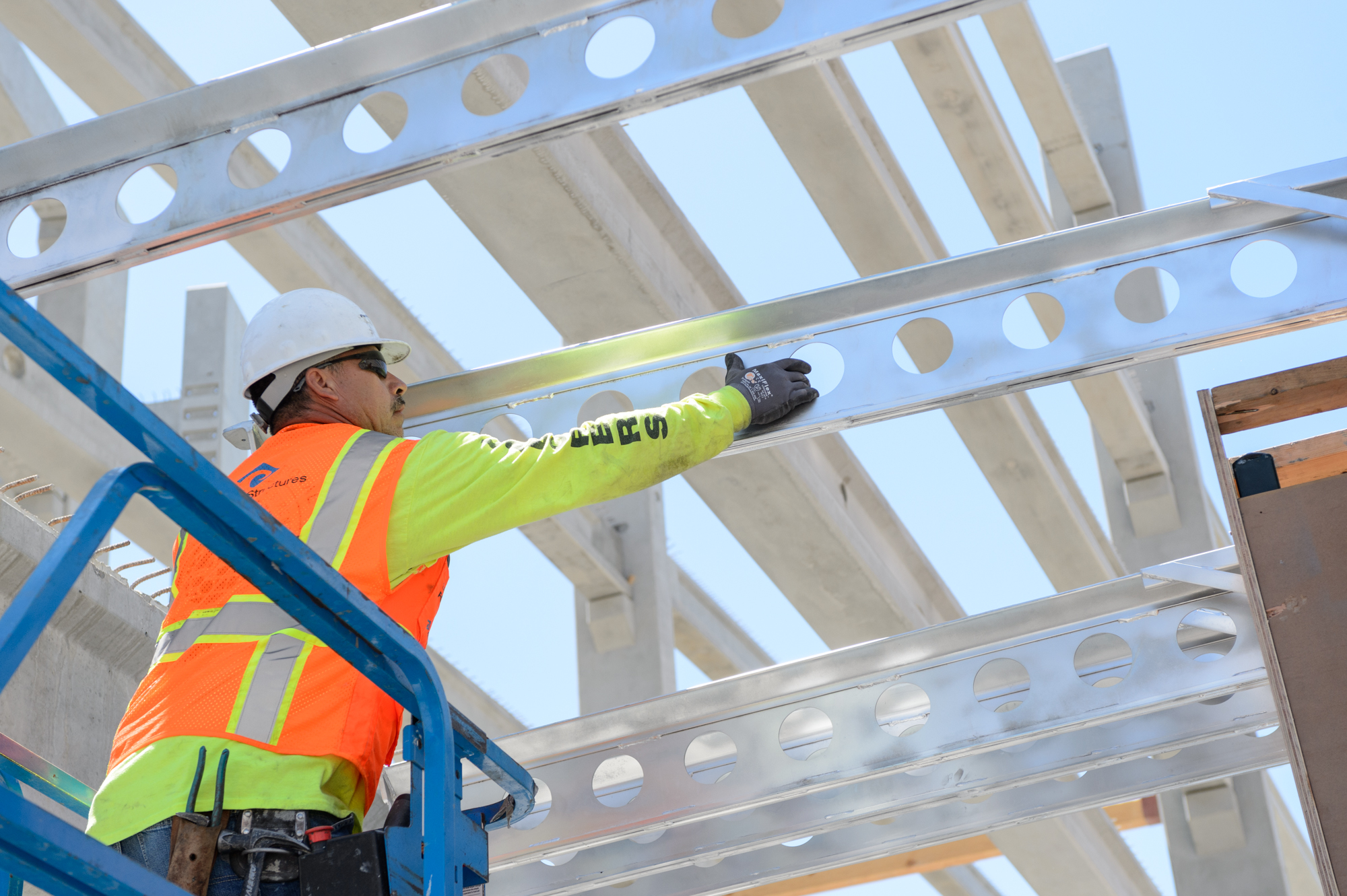

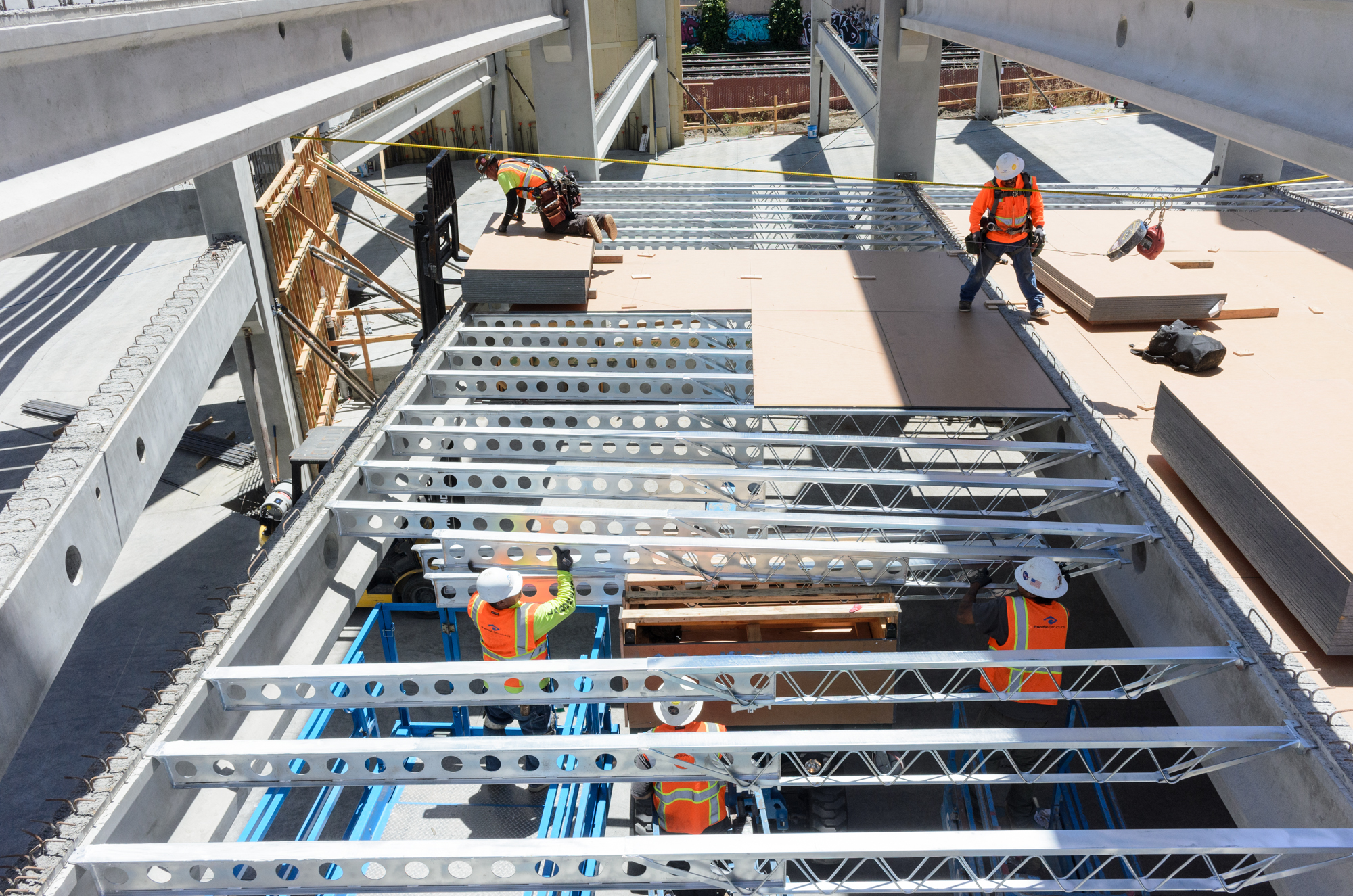

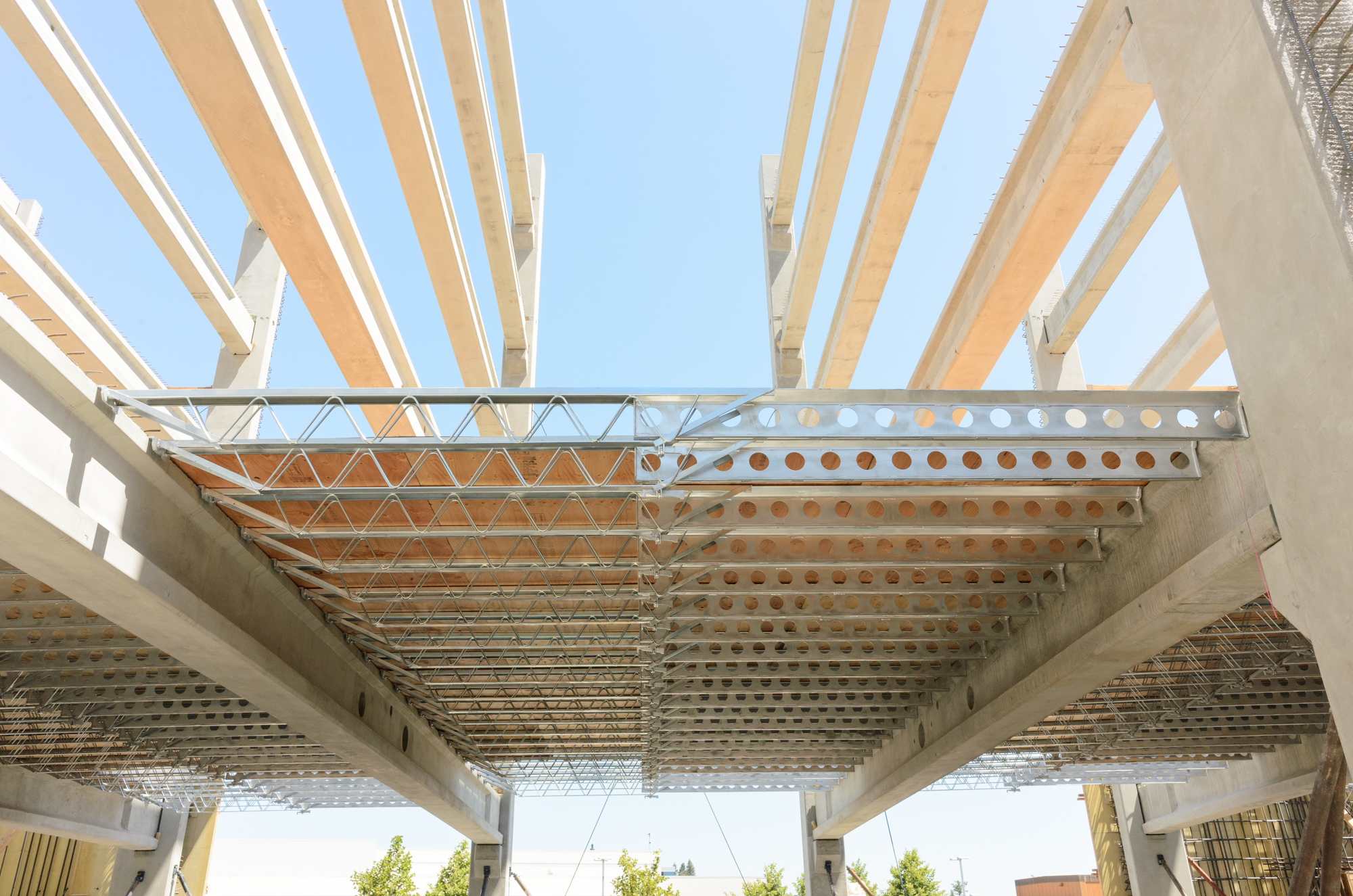

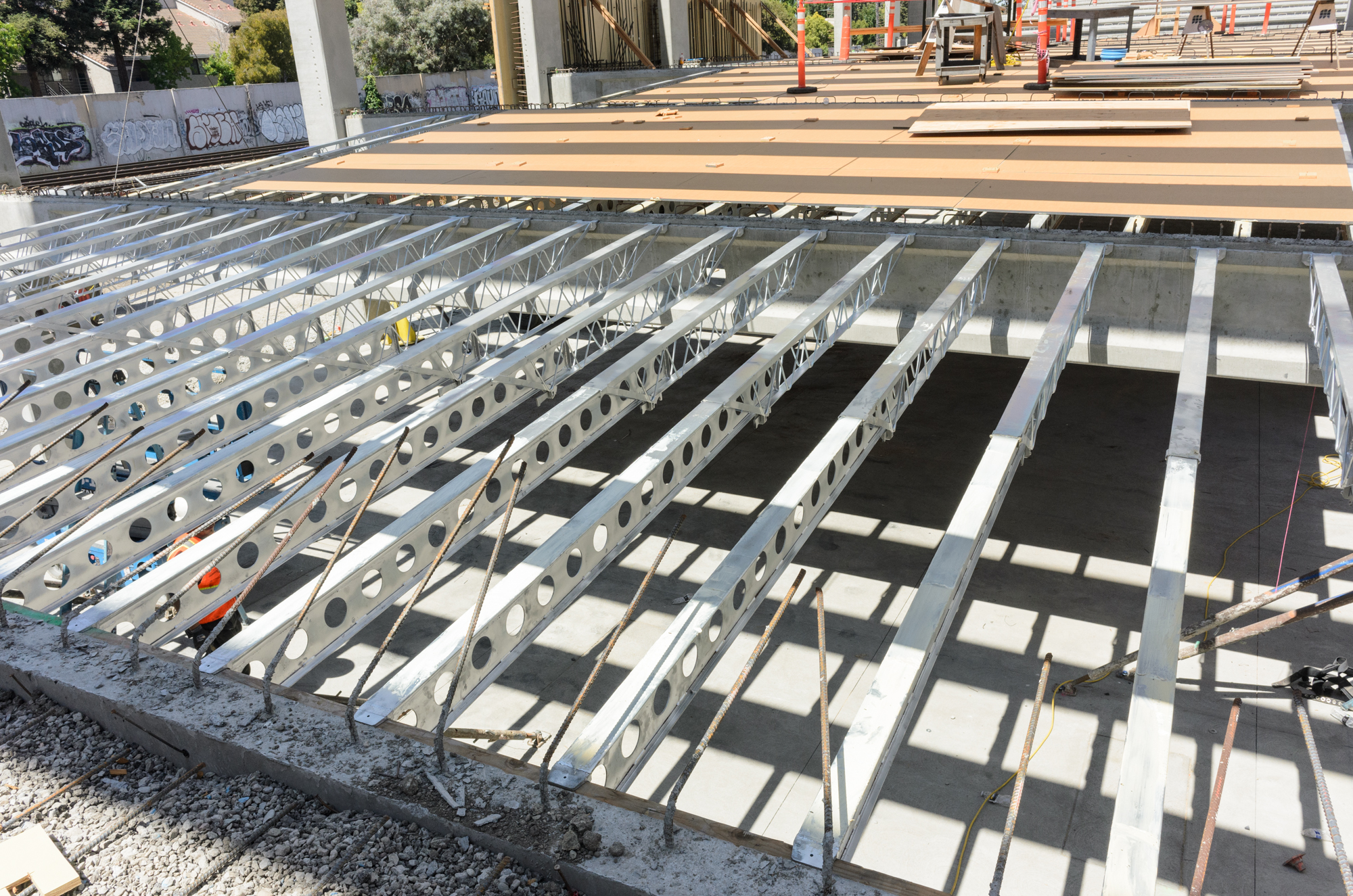

PRO-SPAN Spanall system is the newest and most advanced versions of one of the most widely recognized and used Concrete Form Support Systems in the past 30 years. Strong enough to supports some of the Industry’s heaviest loads, yet light enough at 115lbs for easy handling. Designed to support spans between 9’-6” to 17’-4”, it is perfect for easy erection and dismantle for jobs to be used alone or with Vertical Shores for long spans continuously thereby reducing shoring costs.

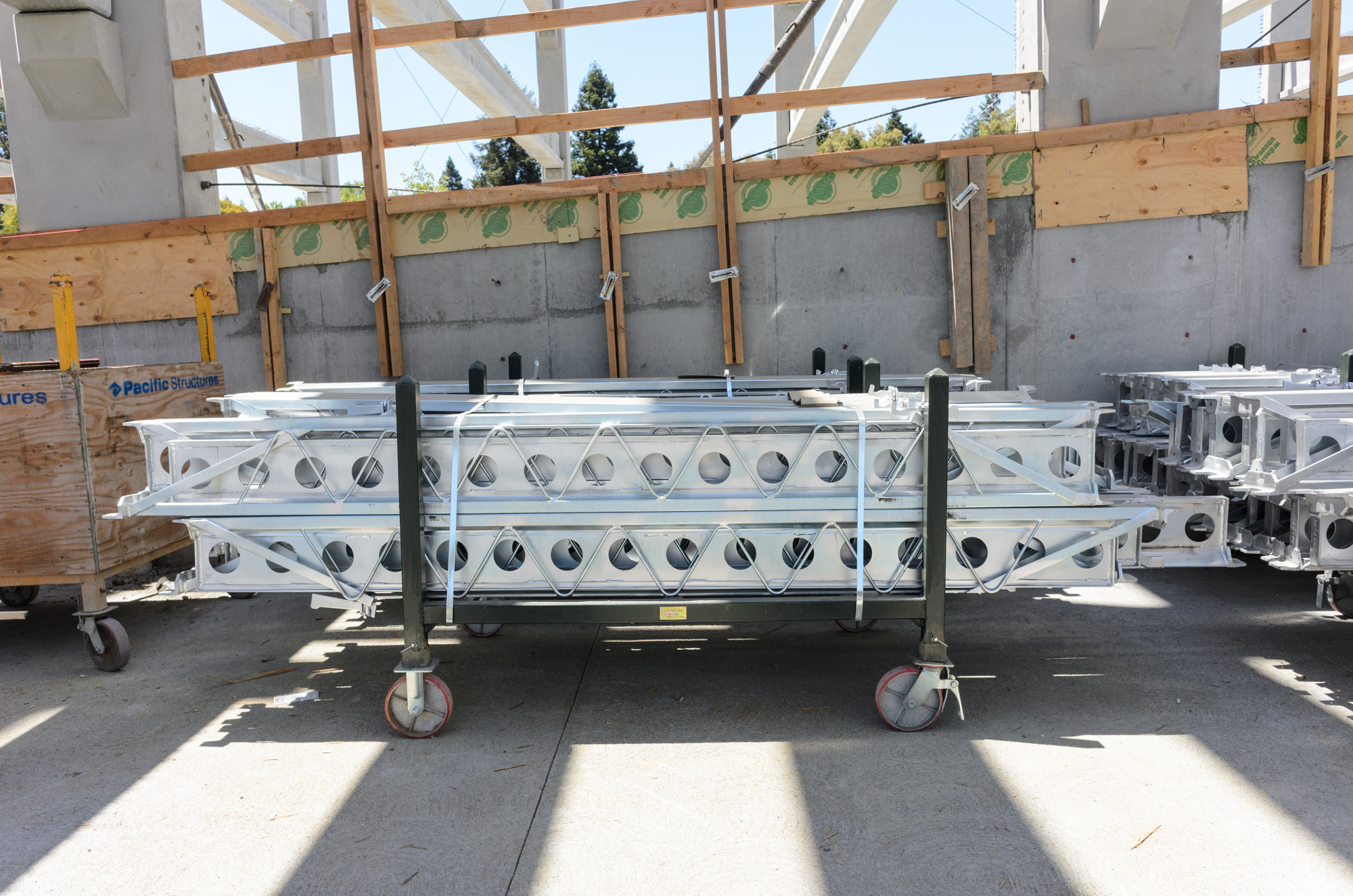

PRO-SPAN Spanall system now comes with fully Hot Dip Galvanized Finish with Electro Plated smaller moving parts to ensure decades of ease and use and less chances for Rust build up or unnecessary indoor storage. The Spanall assemblies are easily packaged into Storage Frame Carts that use Fixed and Swivel Casters for ease of mobility getting them, around on the jobsites.
PRO-SPAN Spanall system utilizes Wedge Locks that can be easily engaged or disengage with a single hammer-blow saving time on Labor. Due to the built in/rolled in Camber you save time on labor not having to make costly adjustments onsite. The Camber is automatically set upon the closing of the Wedge Lock once Spanall is set to predetermined length necessary for your project.

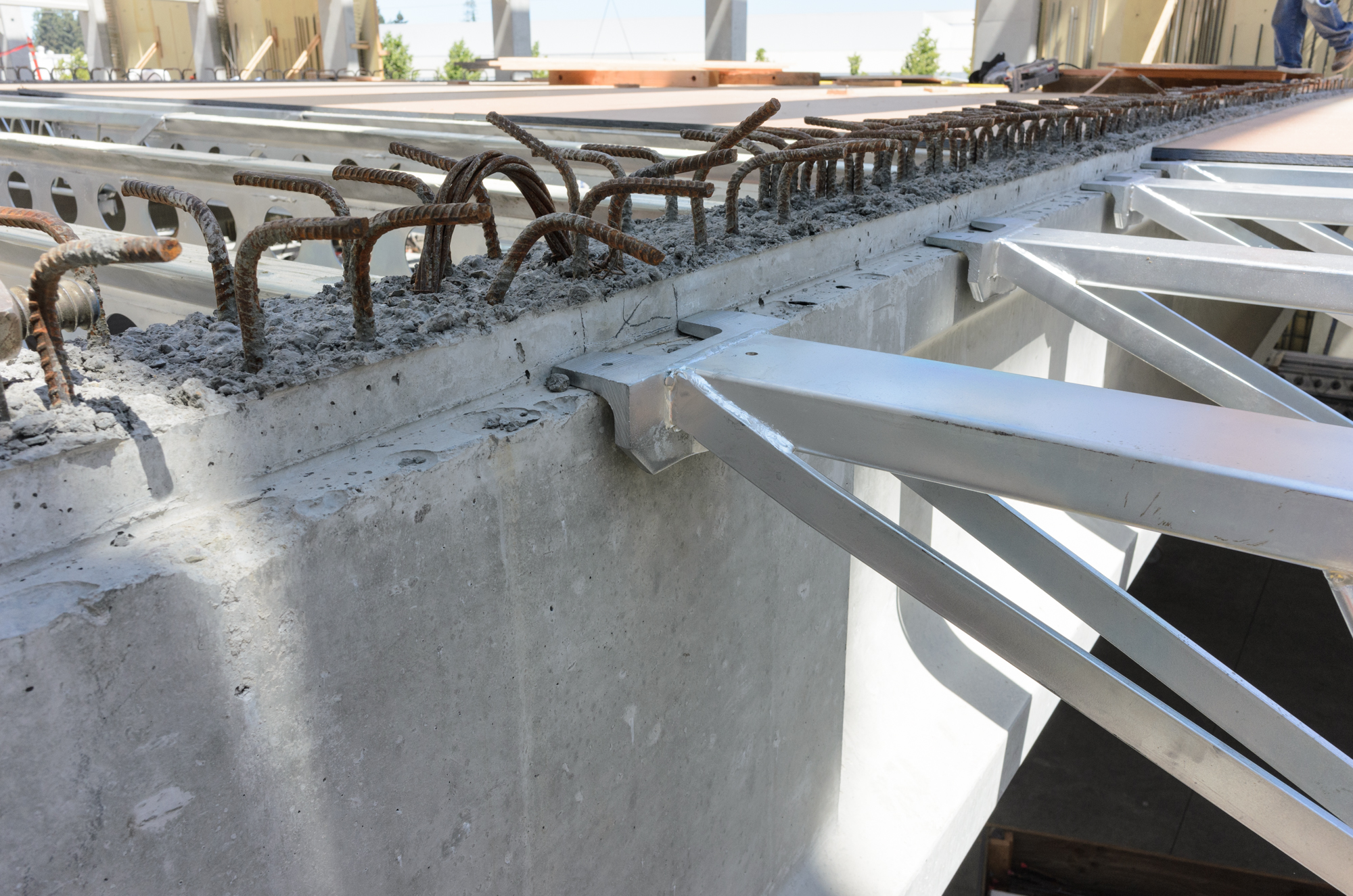

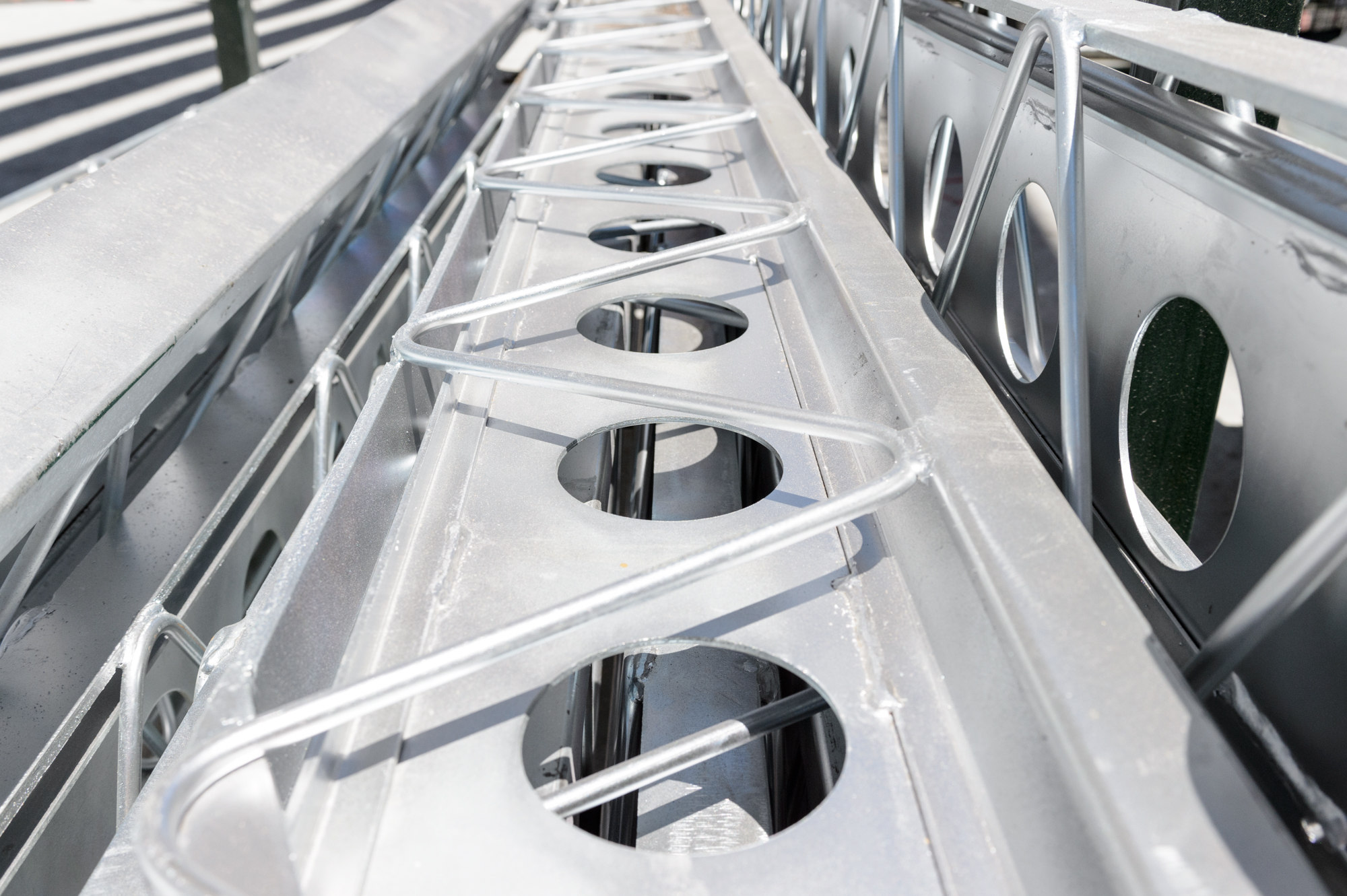

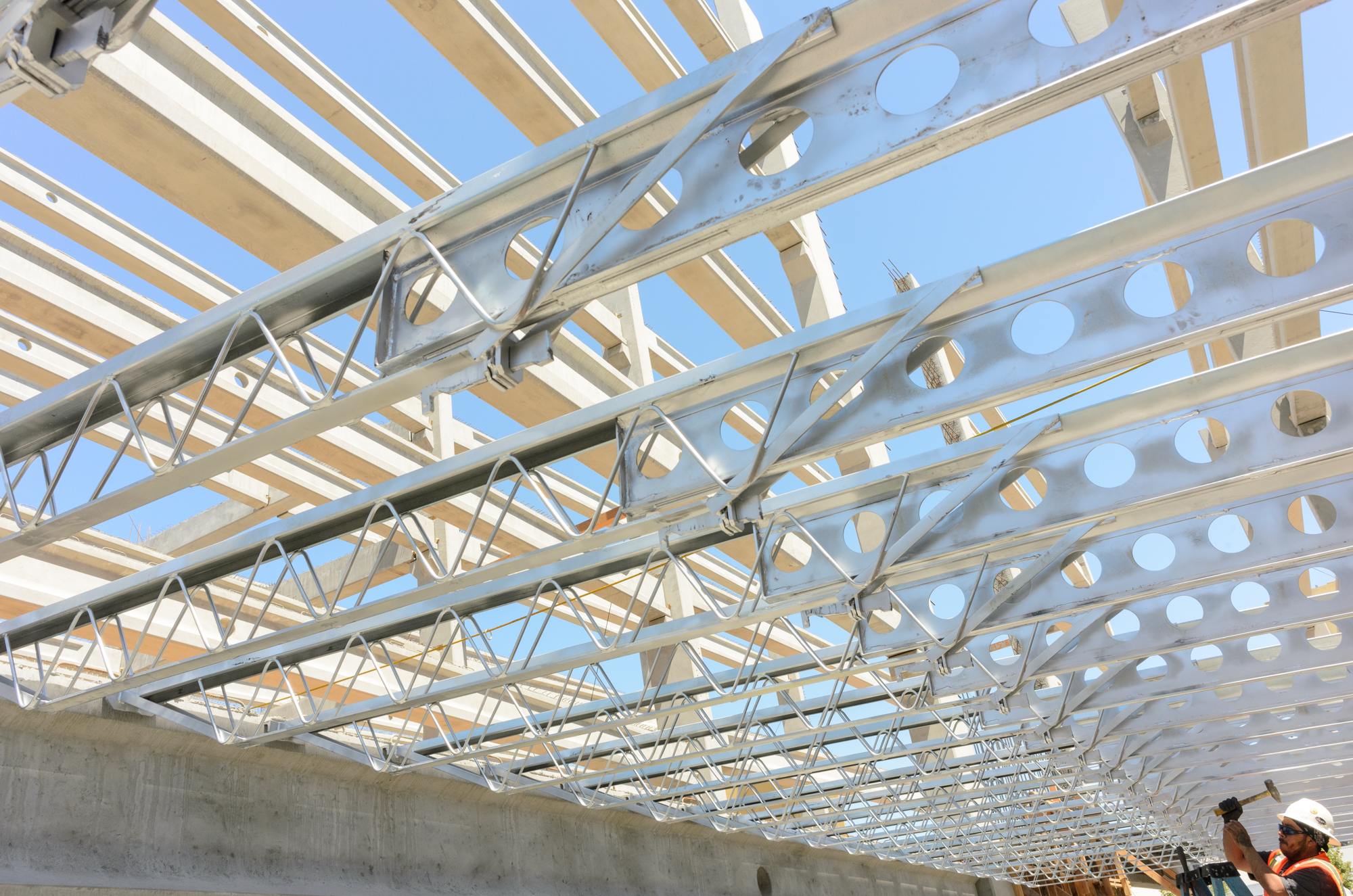

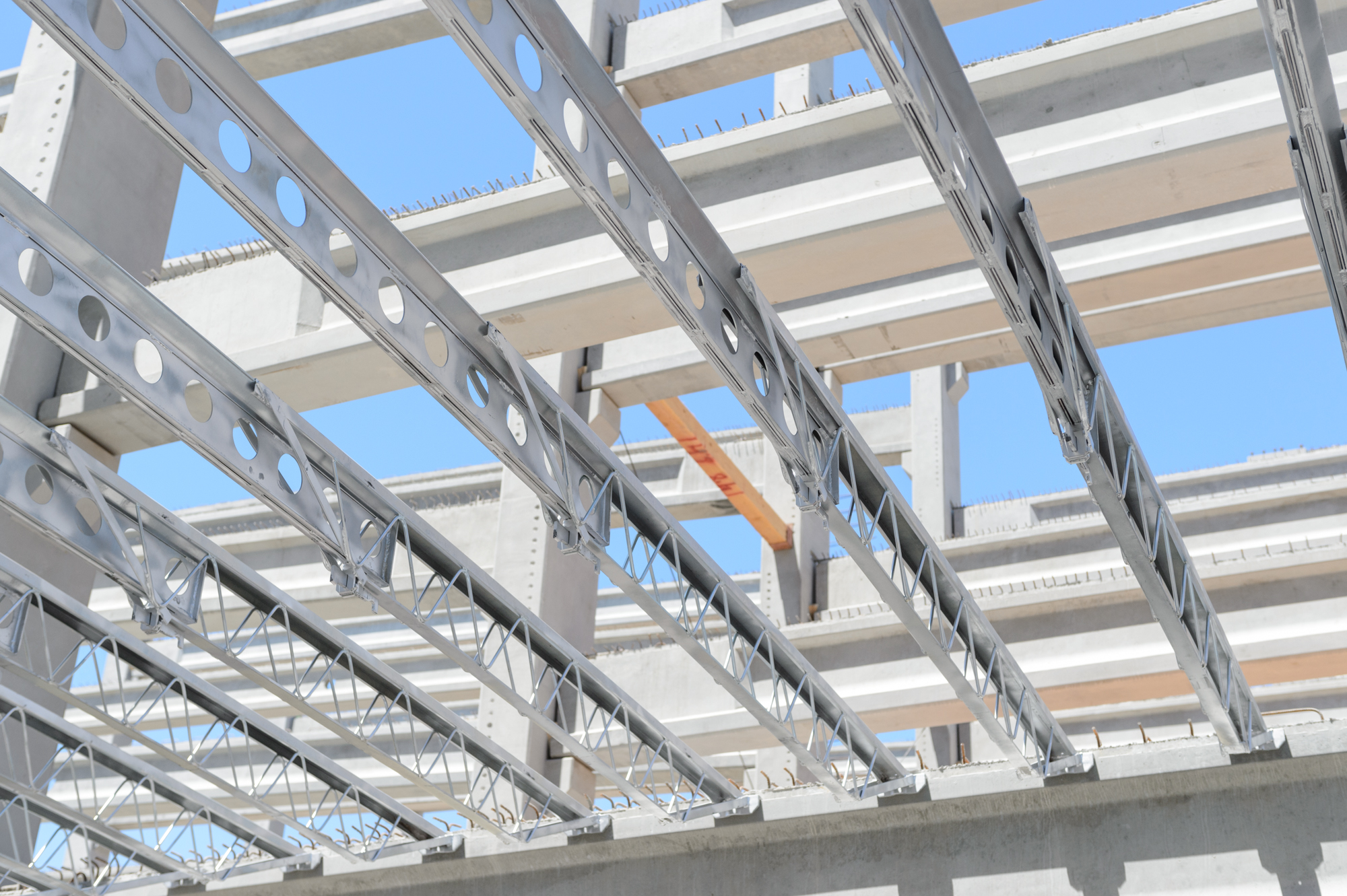

PRO-SPAN Spanall system has strong interfitting Bearing Prongs on either side of the Spanall Assy to allow resting the shores directly on supports or vertical shores. The Lattice Sections have a solid bottom chord that allows for the Sliding Plate to easily and SAFELY adjust inside the Lattice as needed while keeping the Plate from falling out through Lattice.
